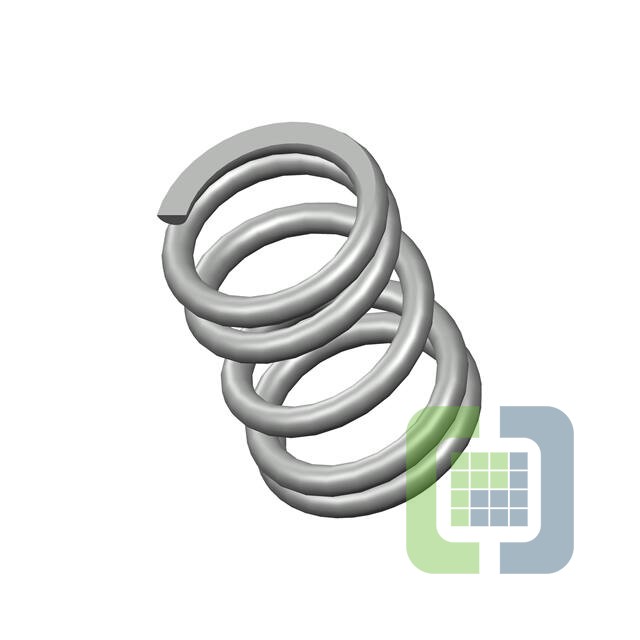

A13-16CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .360,L= .50,W= .047
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 584
Can ship immediately
Pricing:
- 1$7.18
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.047" (1.19mm)
- Diameter - Outside:0.360" (9.14mm)
- Diameter - Inside:0.266" (6.76mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.500" (12.70mm)
- Max Load:-
- Rate:77.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
