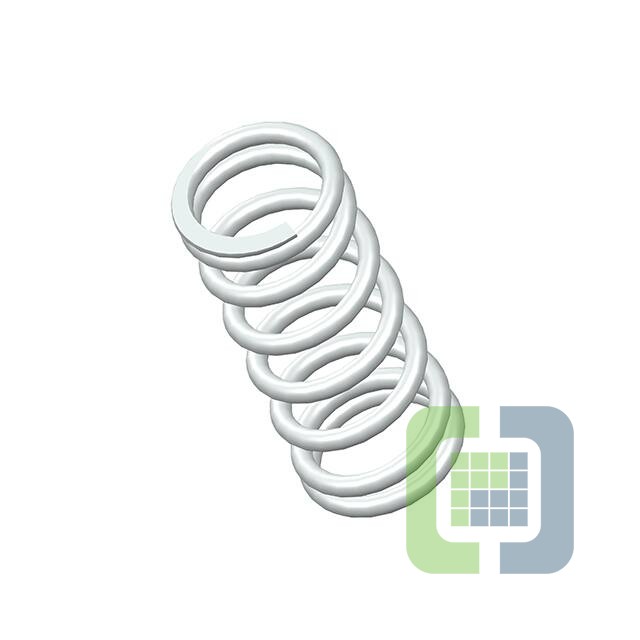

71162SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .360,L= .88,W= .045
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,277
Can ship immediately
Pricing:
- 1$7.2
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.045" (1.14mm)
- Diameter - Outside:0.360" (9.14mm)
- Diameter - Inside:0.270" (6.86mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.880" (22.35mm)
- Max Load:-
- Rate:28.0 lbs/in
- End Style:Closed & Ground
- Finish:None
