70429SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

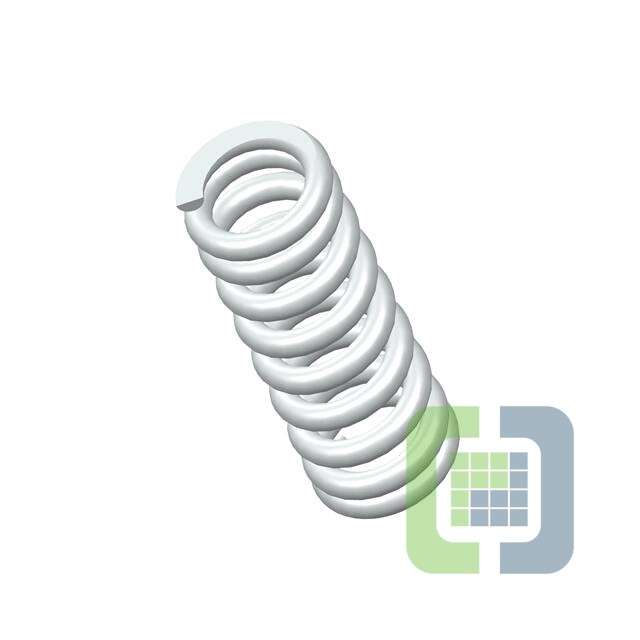

- DescriptionCOMP O= .180,L= .50,W= .032
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,272
Can ship immediately
Pricing:
- 1$7.23
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.032" (0.81mm)
- Diameter - Outside:0.180" (4.57mm)
- Diameter - Inside:0.116" (2.95mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.500" (12.70mm)
- Max Load:-
- Rate:55.0 lbs/in
- End Style:Closed & Ground
- Finish:None
