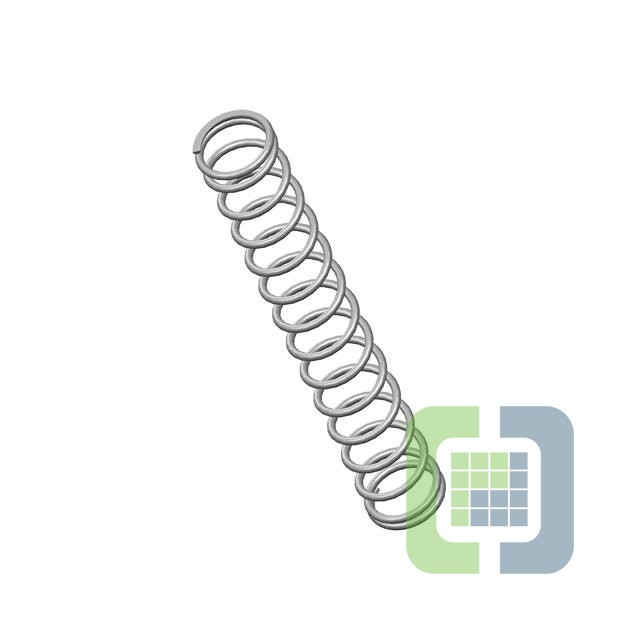

70083CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .120,L= .81,W= .012
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 2,466
Can ship immediately
Pricing:
- 1$7.33
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.012" (0.30mm)
- Diameter - Outside:0.120" (3.05mm)
- Diameter - Inside:0.096" (2.44mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.810" (20.57mm)
- Max Load:-
- Rate:1.8 lbs/in
- End Style:Closed & Ground
- Finish:None
