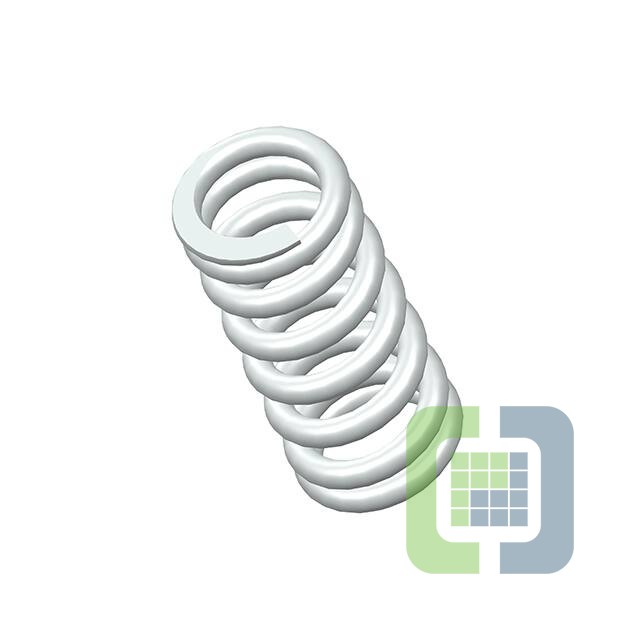

70989SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .300,L= .69,W= .049
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 407
Can ship immediately
Pricing:
- 1$7.38
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.049" (1.24mm)
- Diameter - Outside:0.300" (7.62mm)
- Diameter - Inside:0.202" (5.13mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.690" (17.53mm)
- Max Load:-
- Rate:77.0 lbs/in
- End Style:Closed & Ground
- Finish:None
