70387SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

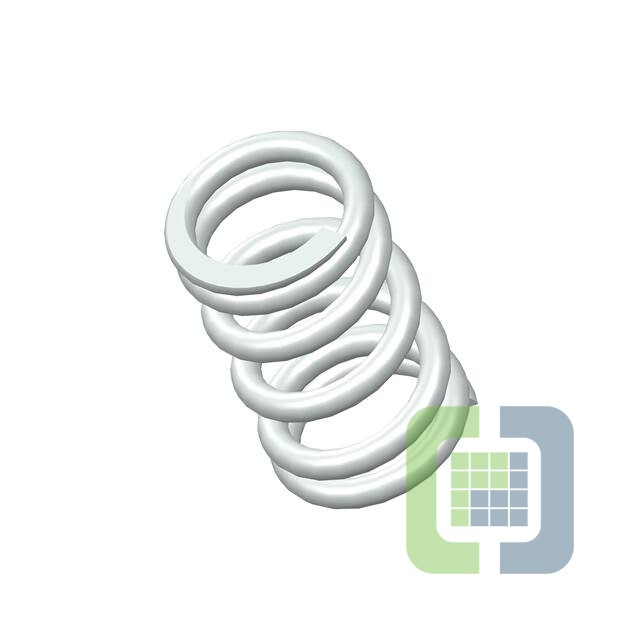

- DescriptionCOMP O= .180,L= .31,W= .026
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 15,391
Can ship immediately
Pricing:
- 1$7.39
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.026" (0.66mm)
- Diameter - Outside:0.180" (4.57mm)
- Diameter - Inside:0.128" (3.25mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.310" (7.87mm)
- Max Load:-
- Rate:40.0 lbs/in
- End Style:Closed & Ground
- Finish:None
