71870SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

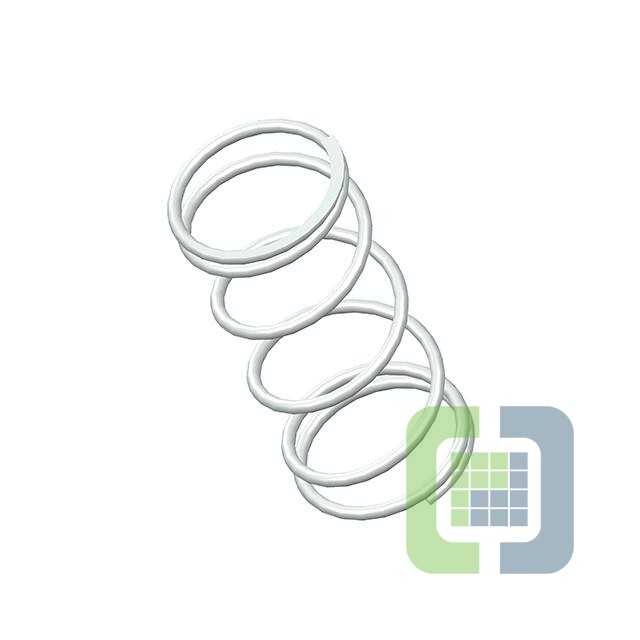

- DescriptionCOMP O= .660,L= 1.50,W= .049
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 2,521
Can ship immediately
Pricing:
- 1$7.39
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.049" (1.24mm)
- Diameter - Outside:0.660" (16.76mm)
- Diameter - Inside:0.562" (14.27mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.500" (38.10mm)
- Max Load:-
- Rate:7.2 lbs/in
- End Style:Closed & Ground
- Finish:None
