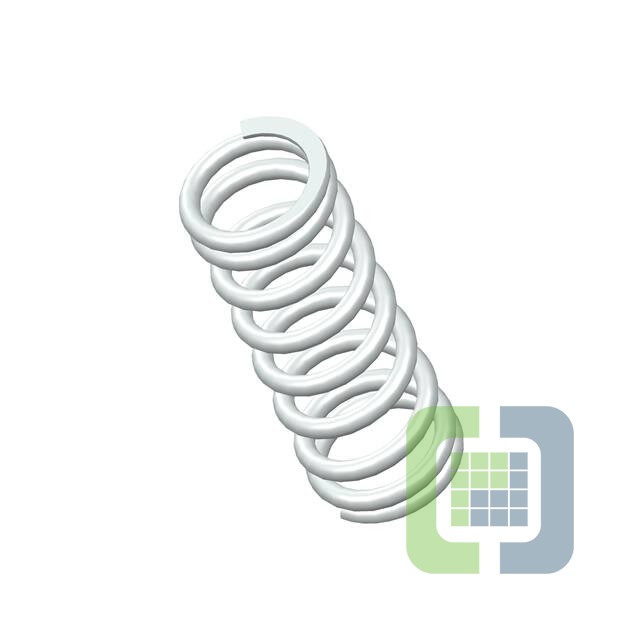

70367SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .180,L= .50,W= .024
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 498
Can ship immediately
Pricing:
- 1$7.39
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.024" (0.61mm)
- Diameter - Outside:0.180" (4.57mm)
- Diameter - Inside:0.132" (3.35mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.500" (12.70mm)
- Max Load:-
- Rate:16.0 lbs/in
- End Style:Closed & Ground
- Finish:None
