B18-136CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

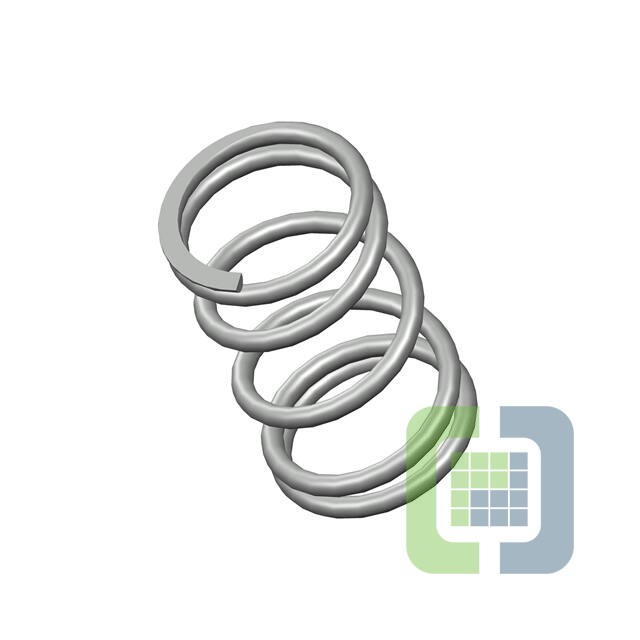

- DescriptionCOMP O= .296,L= .50,W= .030
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 394
Can ship immediately
Pricing:
- 1$7.42
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.030" (0.76mm)
- Diameter - Outside:0.296" (7.52mm)
- Diameter - Inside:0.236" (5.99mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.500" (12.70mm)
- Max Load:-
- Rate:18.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
