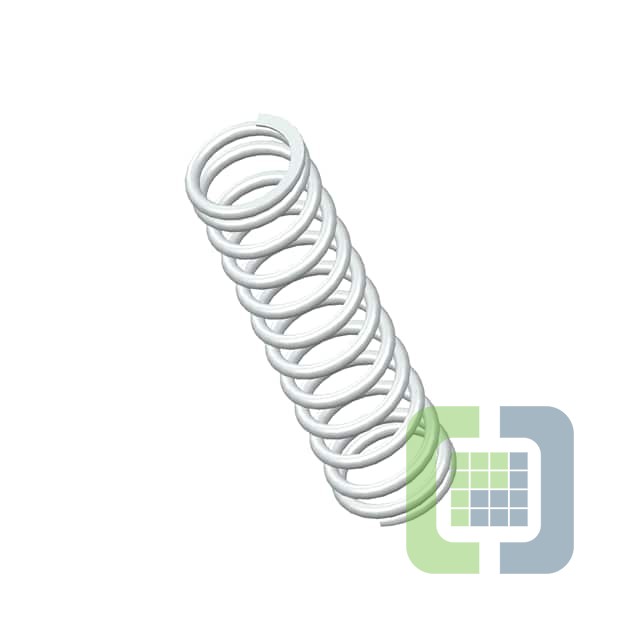

S-1631CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .843,L= 3.28,W= .097
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 283
Can ship immediately
Pricing:
- 1$7.44
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.097" (2.46mm)
- Diameter - Outside:0.843" (21.41mm)
- Diameter - Inside:0.649" (16.48mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.280" (83.31mm)
- Max Load:-
- Rate:26.0 lbs/in
- End Style:Closed & Ground
- Finish:None
