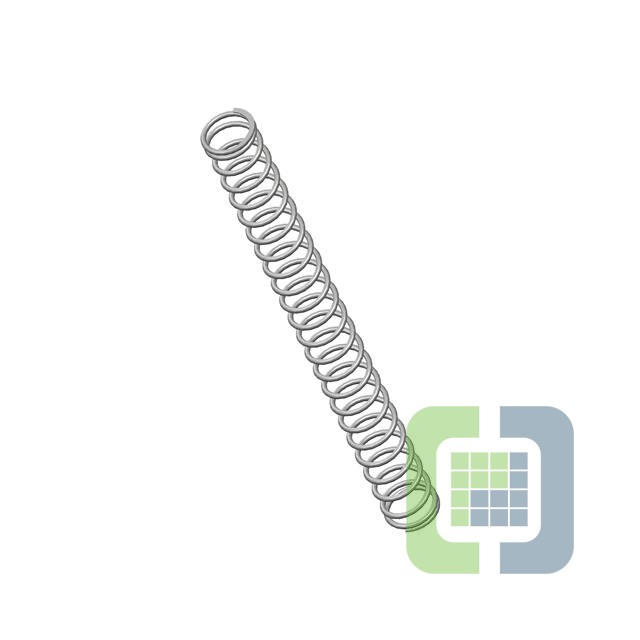

3030CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .765,L= 8.00,W= .075
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 290
Can ship immediately
Pricing:
- 1$8.22
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.075" (1.91mm)
- Diameter - Outside:0.765" (19.43mm)
- Diameter - Inside:0.615" (15.62mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:8.000" (203.20mm)
- Max Load:-
- Rate:6.2 lbs/in
- End Style:Closed & Ground
- Finish:Gold Iridite
