72169CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

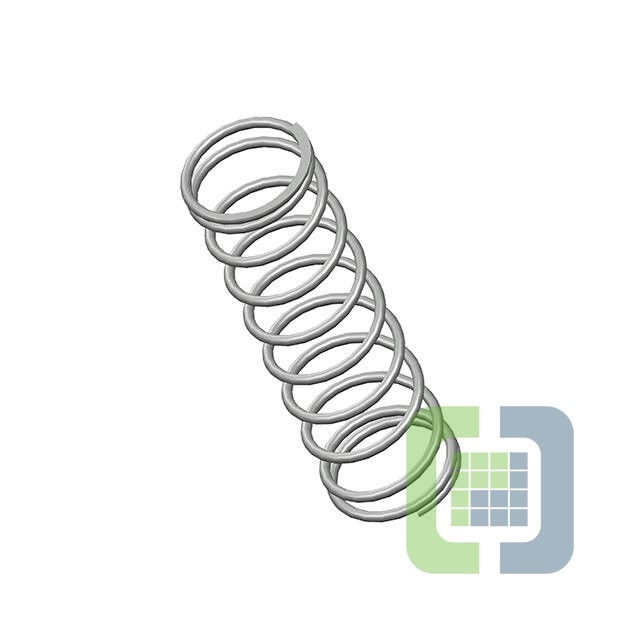

- DescriptionCOMP O= .850,L= 3.00,W= .067
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 313
Can ship immediately
Pricing:
- 1$8.65
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.067" (1.70mm)
- Diameter - Outside:0.850" (21.59mm)
- Diameter - Inside:0.716" (18.19mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.000" (76.20mm)
- Max Load:-
- Rate:7.3 lbs/in
- End Style:Closed & Ground
- Finish:None
