3076CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

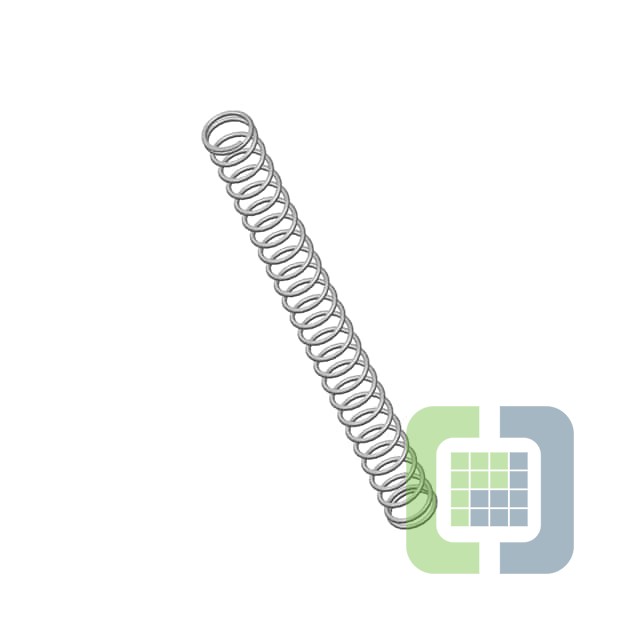

- DescriptionCOMP O= .938,L=10.50,W= .0915
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 635
Can ship immediately
Pricing:
- 1$9.72
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.091" (2.31mm)
- Diameter - Outside:0.938" (23.83mm)
- Diameter - Inside:0.756" (19.20mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:10.500" (266.70mm)
- Max Load:-
- Rate:6.8 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
