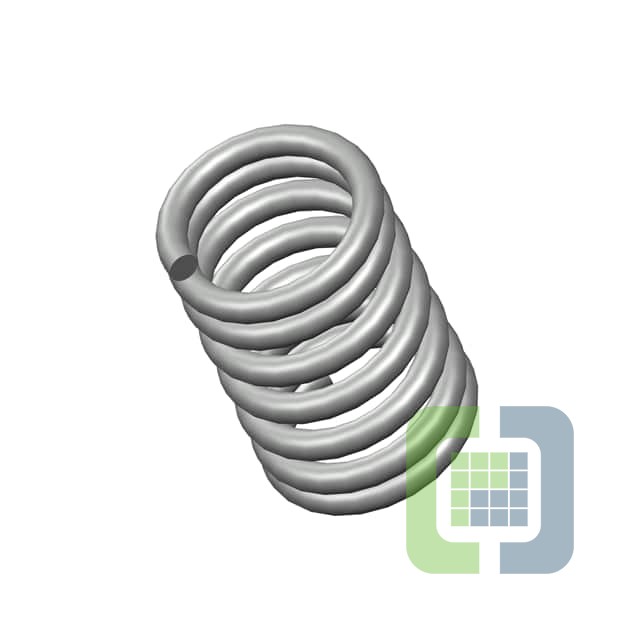

10317CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.468,L= 2.38,W= .200
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 312
Can ship immediately
Pricing:
- 1$10.32
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.200" (5.08mm)
- Diameter - Outside:1.468" (37.29mm)
- Diameter - Inside:1.068" (27.13mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.380" (60.45mm)
- Max Load:-
- Rate:215.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
