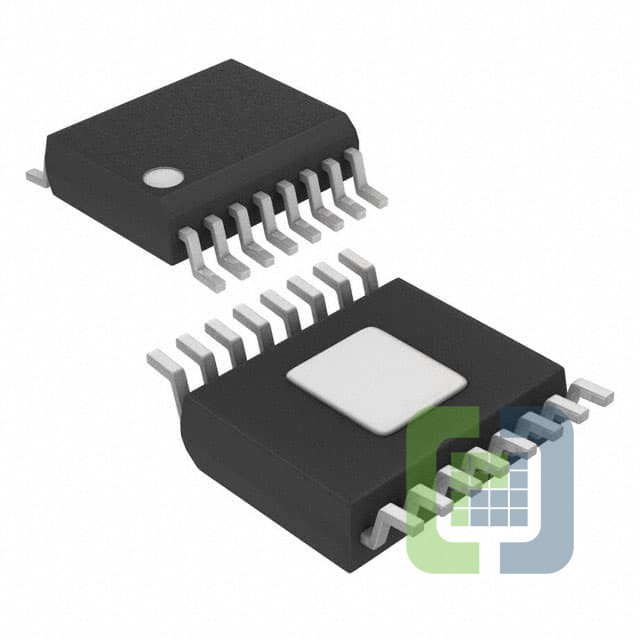

MAX15046BAEE+T
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 16QSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX15046BAEE+T Datasheet
-
ECAD Model
- Share
In Stock: 4,637
Can ship immediately
Pricing:
- 1$2.9
- 2,500$1.729
- 5,000$1.664
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 40V
- Frequency - Switching:100kHz ~ 1MHz
- Duty Cycle (Max):87.5%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-LSSOP (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package:16-QSOP-EP
