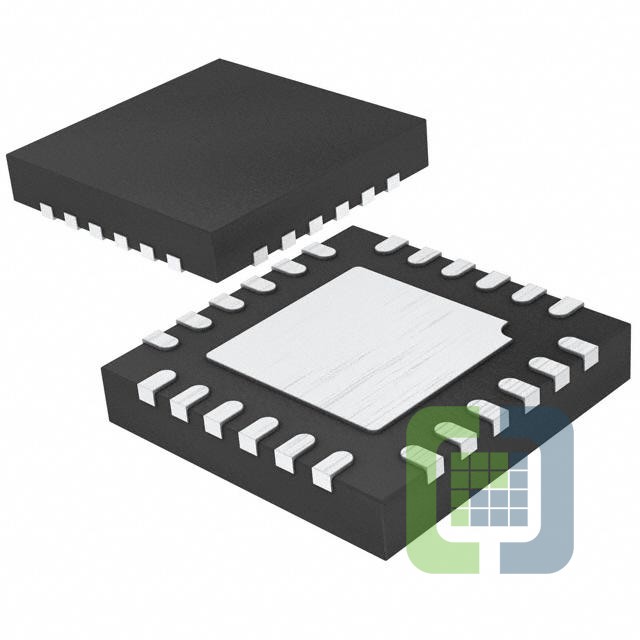

LTC3769EUF#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BOOST/SEPIC 24QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3769EUF#PBF Datasheet
-
ECAD Model
- Share
In Stock: 593
Can ship immediately
Pricing:
- 1$6.58
- 25$4.36612
- 100$3.61011
- 250$3.42962
- 500$3.35224
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, SEPIC
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 60V
- Frequency - Switching:105kHz ~ 760kHz
- Duty Cycle (Max):96%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:24-WFQFN Exposed Pad
- Supplier Device Package:24-QFN (4x4)
