TPS53681RSBT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDUAL-CHANNEL 6+2/5+3 D-CAP+TM MU
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 615
Can ship immediately
Pricing:
- 1$11.87
- 250$8.23552
- 500$7.5296
- 1,250$6.58841
Quote It
Technical Details
- Series:D-CAP+™
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:8
- Voltage - Supply (Vcc/Vdd):4.5V ~ 17V
- Frequency - Switching:300kHz ~ 1MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:PMBus
- Control Features:Current Limit, Enable
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

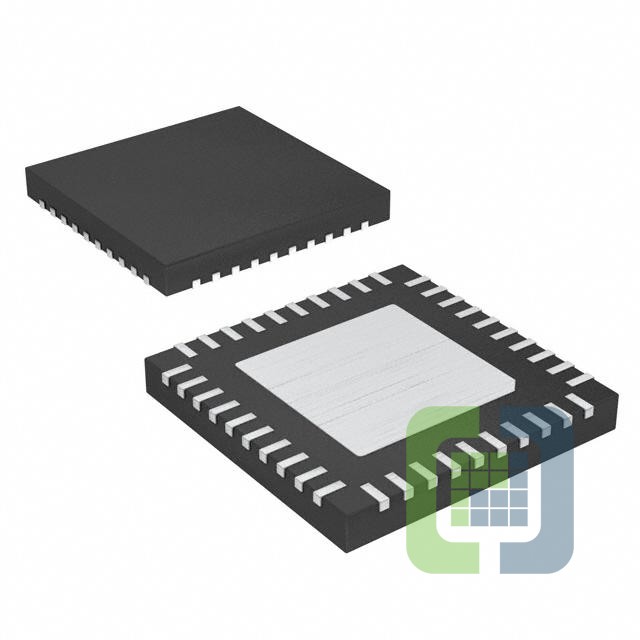

- Package / Case:40-WFQFN Exposed Pad
- Supplier Device Package:40-WQFN (5x5)
