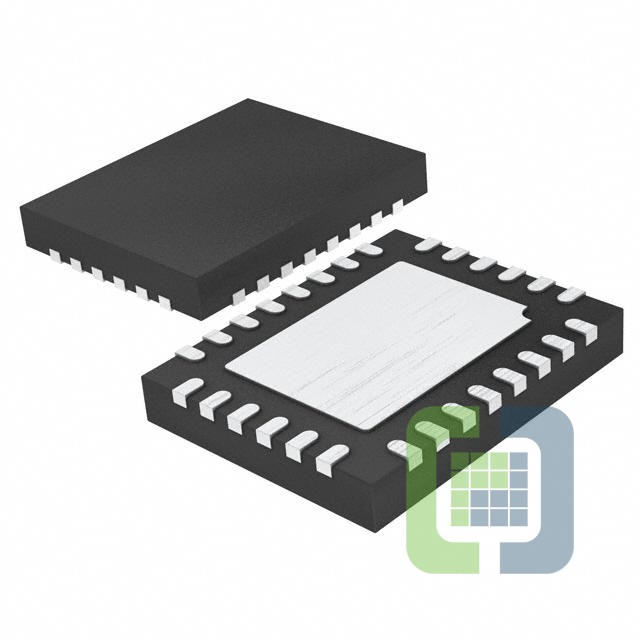

LTC3784IUFD#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BOOST 28QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3784IUFD#PBF Datasheet
-
ECAD Model
- Share
In Stock: 759
Can ship immediately
Pricing:
- 1$10.17
- 25$6.75059
- 100$5.58163
- 250$5.30257
- 500$5.18295
Quote It
Technical Details
- Series:PolyPhase®
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up
- Output Configuration:Positive
- Topology:Boost
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 60V
- Frequency - Switching:105kHz ~ 760kHz
- Duty Cycle (Max):96%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:28-WFQFN Exposed Pad
- Supplier Device Package:28-QFN (4x5)
