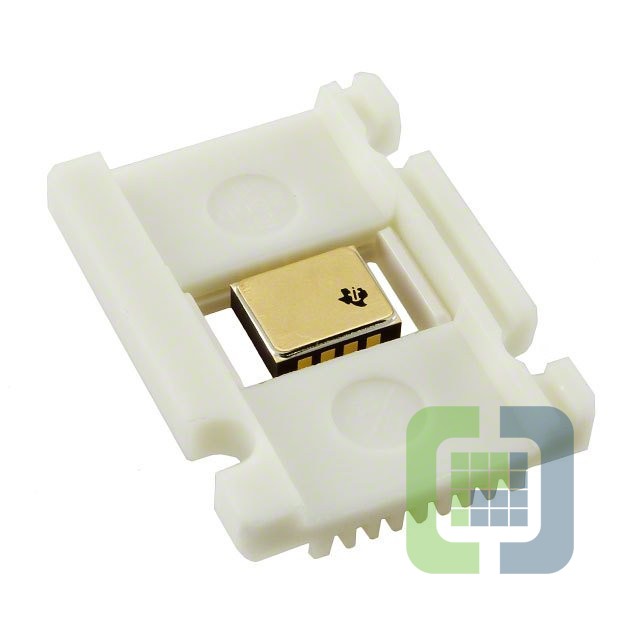

TPS40200SHKJ
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 8CFP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 328
Can ship immediately
Pricing:
- 1$217.83
- 10$206.57908
- 25$200.9588
- 100$186.90574
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):5.5V ~ 52V
- Frequency - Switching:35kHz ~ 500kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Frequency Control, Soft Start
- Operating Temperature:-55°C ~ 210°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-CFlatpack
- Supplier Device Package:8-CFP
