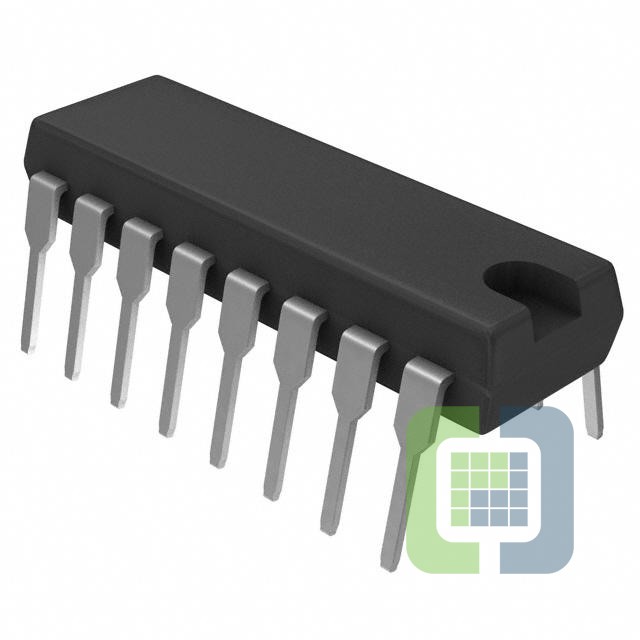

SG3525AN
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BCK/PUSH-PULL 16DIP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet SG3525AN Datasheet
-
ECAD Model
- Share
In Stock: 47,819,118
Can ship immediately
Pricing:
- 1$1.59
- 25$1.3642
- 100$1.13624
- 500$0.95368
- 1,000$0.77115
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Push-Pull
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 35V
- Frequency - Switching:100Hz ~ 400kHz
- Duty Cycle (Max):49%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Soft Start
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Through Hole
- Package / Case:16-DIP (0.300", 7.62mm)
- Supplier Device Package:16-DIP
