LM5642MTCX/NOPB
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 28TSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 4,506
Can ship immediately
Pricing:
- 1$4.33
- 2,500$2.0482
- 5,000$1.9712
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 36V
- Frequency - Switching:200kHz
- Duty Cycle (Max):98.9%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

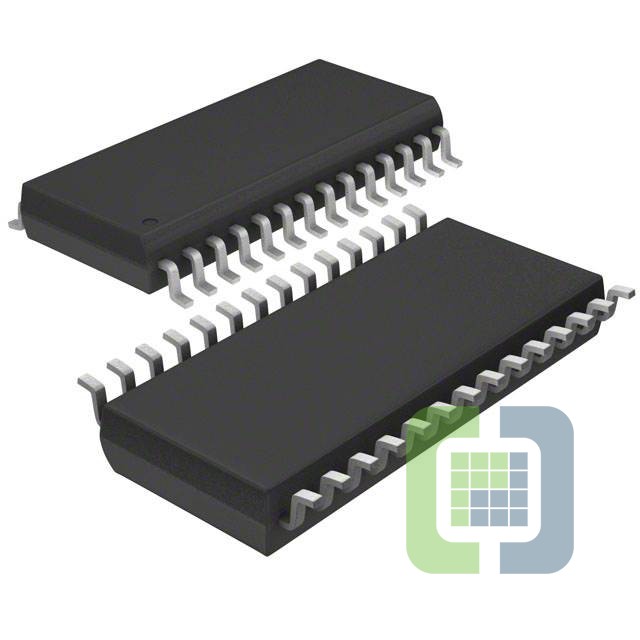

- Package / Case:28-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:28-TSSOP
