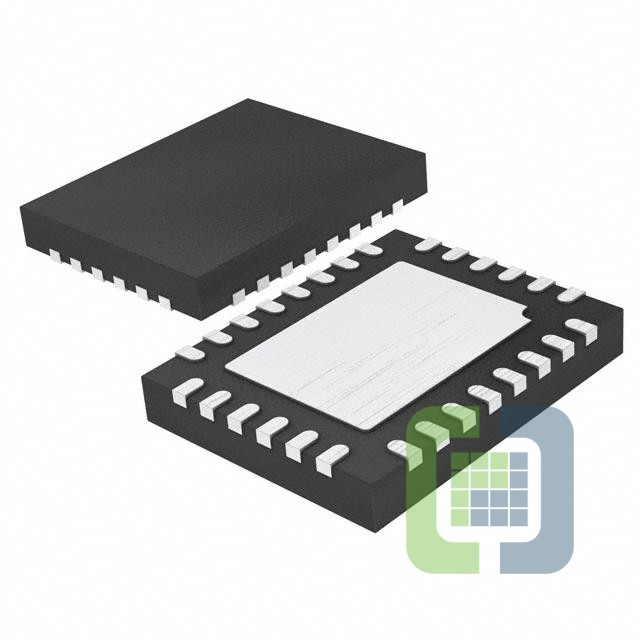

LTC3850EUF#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 28QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3850EUF#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 4,843
Can ship immediately
Pricing:
- 1$6.57
- 2,500$3.22354
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4V ~ 24V
- Frequency - Switching:250kHz ~ 780kHz
- Duty Cycle (Max):97.2%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:28-WFQFN Exposed Pad
- Supplier Device Package:28-QFN (4x4)
