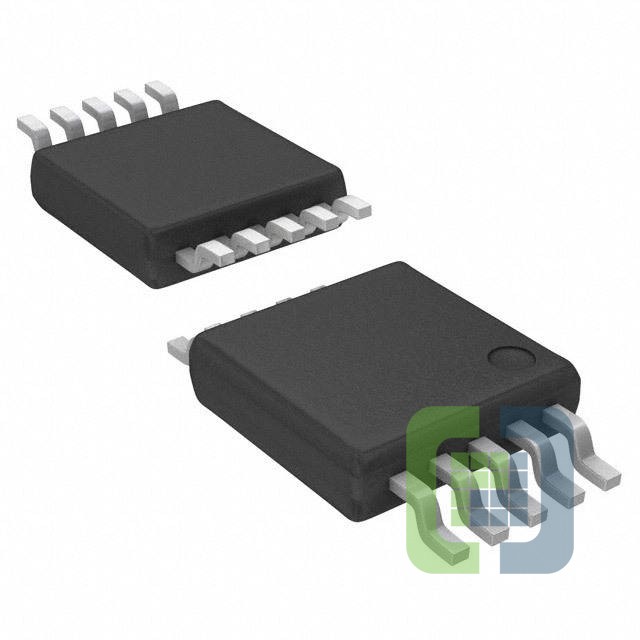

MAX1846EUB+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR FLYBACK 10UMAX
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX1846EUB+ Datasheet
-
ECAD Model
- Share
In Stock: 379,573
Can ship immediately
Pricing:
- 1$5.67
- 10$5.12145
- 50$4.88325
- 100$4.24009
- 250$4.04952
- 500$3.69221
- 1,000$3.2158
- 2,500$3.09669
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Negative
- Topology:Flyback
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3V ~ 16.5V
- Frequency - Switching:100kHz ~ 500kHz
- Duty Cycle (Max):96%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:10-uMAX
