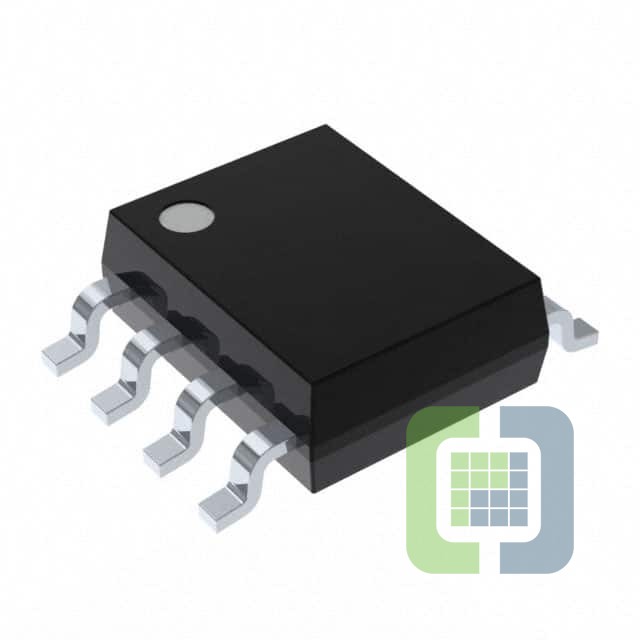

MAX776ESA+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK-BOOST 8SOIC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX776ESA+ Datasheet
-
ECAD Model
- Share
In Stock: 2,002,429
Can ship immediately
Pricing:
- 1$6.25
- 10$5.64266
- 25$5.38022
- 100$4.6716
- 300$4.46165
- 500$4.06797
- 1,000$3.54307
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Negative
- Topology:Buck-Boost
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3V ~ 16.5V
- Frequency - Switching:300kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SOIC
