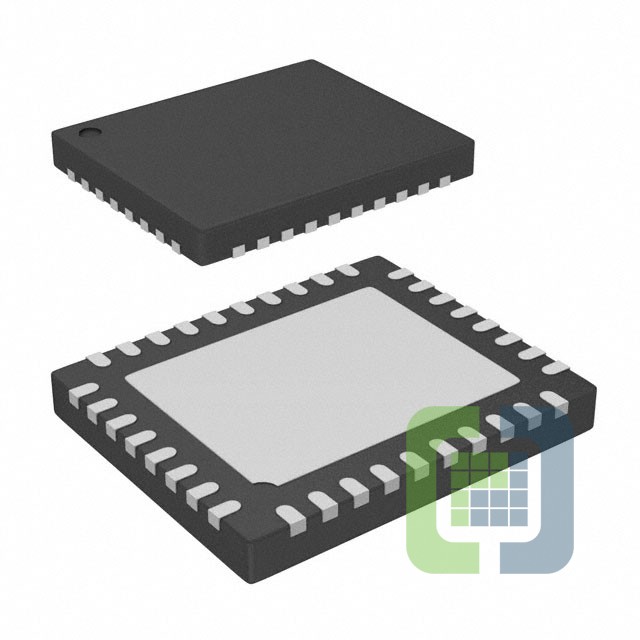

LTC3861EUHE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 36QFN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3861EUHE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 356
Can ship immediately
Pricing:
- 1$6.91
- 25$4.58611
- 100$3.7921
- 250$3.60249
- 500$3.52123
Quote It
Technical Details
- Series:PolyPhase®
- Package:Tube
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):3V ~ 5.5V
- Frequency - Switching:250kHz ~ 3MHz
- Duty Cycle (Max):91.5%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Phase Control, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:36-WFQFN Exposed Pad
- Supplier Device Package:36-QFN (5x6)
