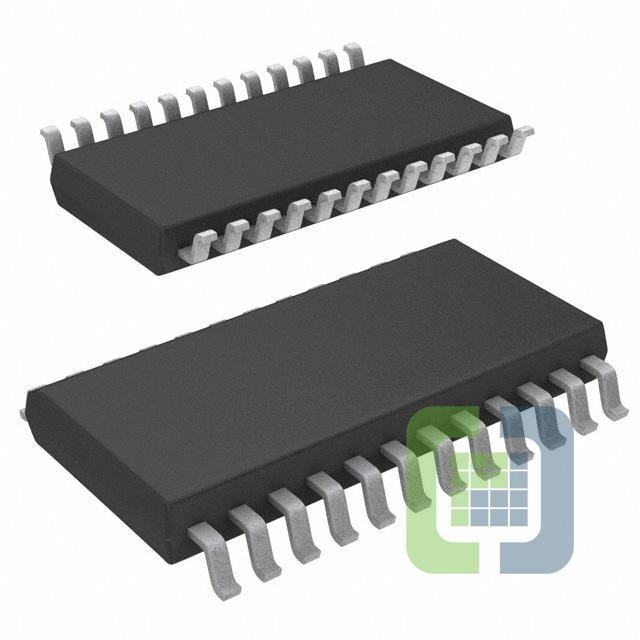

LTC3722EGN-1#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR FULL-BRIDGE 24SSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC3722EGN-1#PBF Datasheet
-
ECAD Model
- Share
In Stock: 336
Can ship immediately
Pricing:
- 1$11.64
- 25$7.72707
- 100$6.38891
- 250$6.06949
- 500$5.93256
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Full-Bridge
- Number of Outputs:6
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):3.8V ~ 10.25V
- Frequency - Switching:-
- Duty Cycle (Max):98.5%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Ramp, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:24-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:24-SSOP
