LT3782EFE#TRPBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BOOST 28TSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LT3782EFE#TRPBF Datasheet
-
ECAD Model
- Share
In Stock: 926
Can ship immediately
Pricing:
- 1$11.4
- 2,000$6.2255
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up
- Output Configuration:Positive
- Topology:Boost
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):6V ~ 40V
- Frequency - Switching:154kHz ~ 465kHz
- Duty Cycle (Max):94%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Reset, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

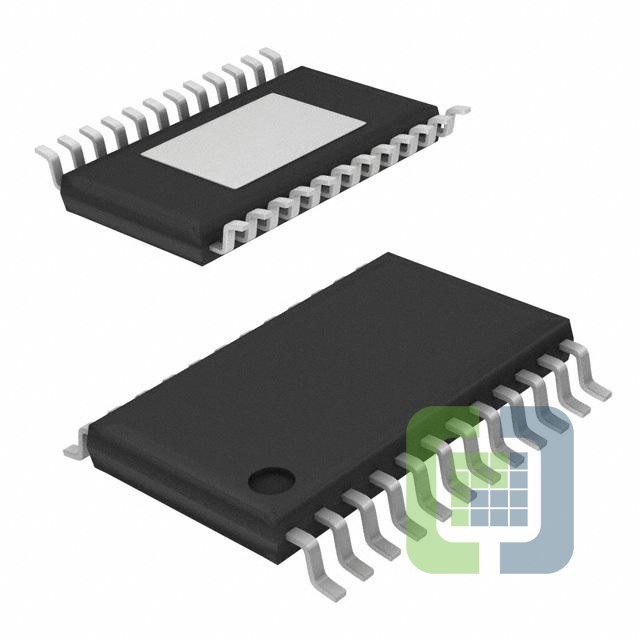

- Package / Case:28-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Supplier Device Package:28-TSSOP-EP
