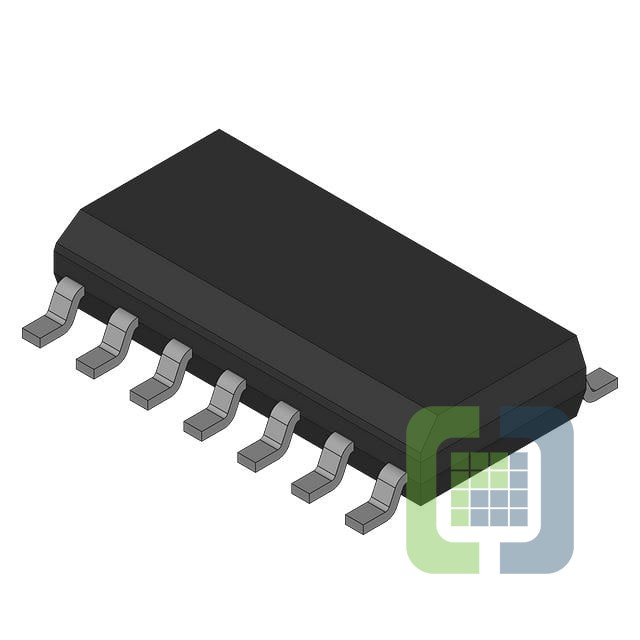

UC3842BDR2G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUC3842 CURRENT-MODE PWM CONTROLL
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet UC3842BDR2G Datasheet
-
ECAD Model
- Share
In Stock: 16,251
Can ship immediately
Pricing:
- 1$0.2
- 2,500$0.07077
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Boost, Flyback
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):10V ~ 30V
- Frequency - Switching:Up to 500kHz
- Duty Cycle (Max):96%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Frequency Control
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:14-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:14-SOIC
