NCP5269BMNTWG
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSYSTEM AGENT CONTROLLER WITH 2-B
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet NCP5269BMNTWG Datasheet
-
ECAD Model
- Share
In Stock: 5,673
Can ship immediately
Pricing:
- 1$0.39
- 3,000$0.39
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3.3V ~ 28V
- Frequency - Switching:300kHz, 400kHz, 600kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Power Good
- Operating Temperature:-40°C ~ 100°C (TA)
- Mounting Type:Surface Mount

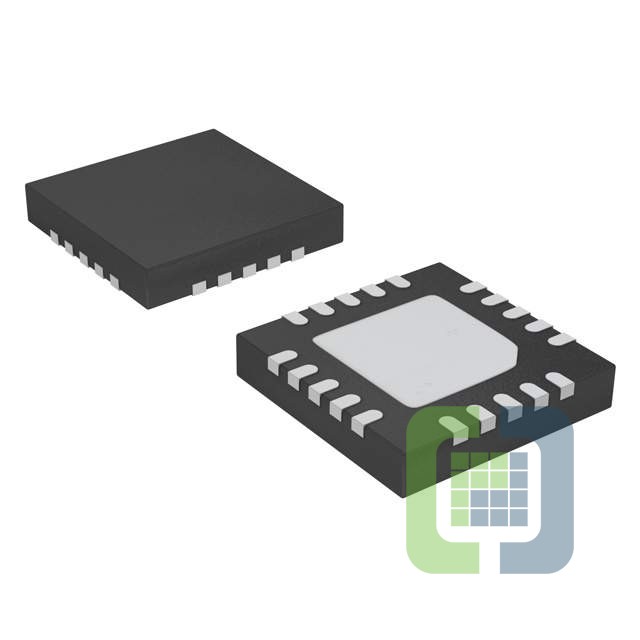

- Package / Case:20-VFQFN Exposed Pad
- Supplier Device Package:20-QFN (3x3)
