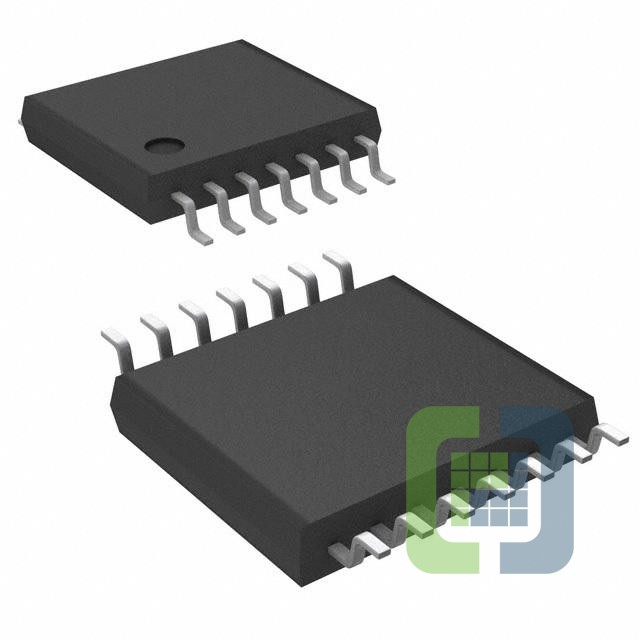

NCP3012DTBR2G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER, VOLTAGE-MO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet NCP3012DTBR2G Datasheet
-
ECAD Model
- Share
In Stock: 58,659
Can ship immediately
Pricing:
- 1$0.53
- 2,500$0.53
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.7V ~ 28V
- Frequency - Switching:75kHz
- Duty Cycle (Max):86%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Power Good
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:14-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:14-TSSOP
