TPS40211DRCR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS40211 WIDE INPUT RANGE CURREN
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 5,975
Can ship immediately
Pricing:
- 1$0.79
- 3,000$0.7182
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Boost, Flyback, SEPIC
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 52V
- Frequency - Switching:35kHz ~ 1MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

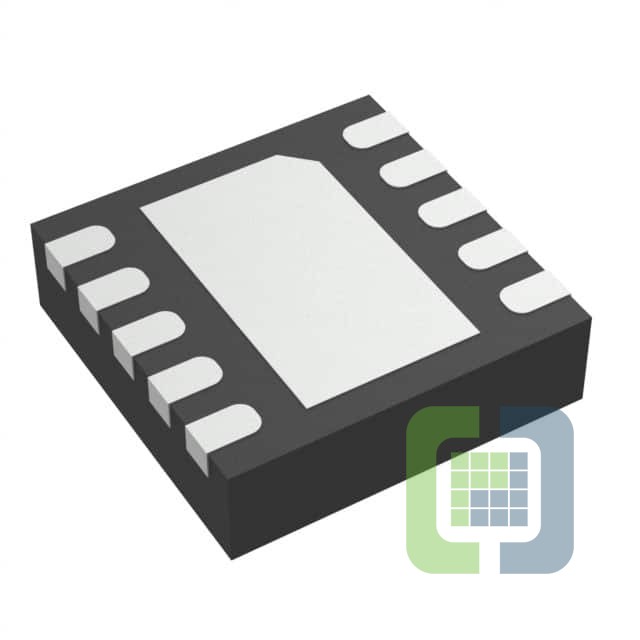

- Package / Case:10-VFDFN Exposed Pad
- Supplier Device Package:10-VSON (3x3)
