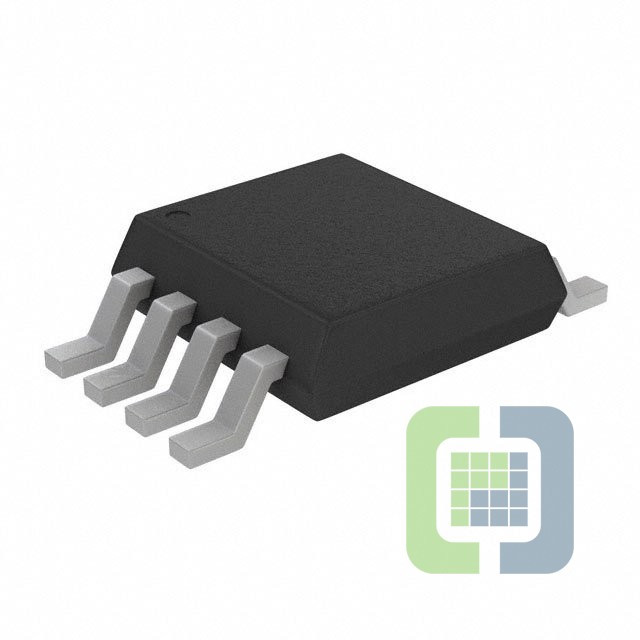

MIC38C45AYMM
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionBICMOS CURRENT-MODE PWM CONTROLL
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MIC38C45AYMM Datasheet
-
ECAD Model
- Share
In Stock: 3,145
Can ship immediately
Pricing:
- 1$0.96
- 400$0.96
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Buck, Boost, Flyback, Forward Converter
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):7.6V ~ 20V
- Frequency - Switching:500kHz
- Duty Cycle (Max):50%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Frequency Control
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:8-MSOP
