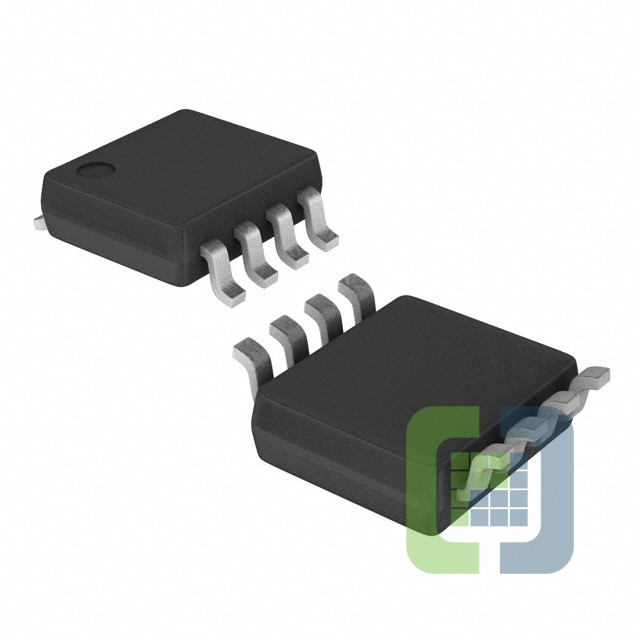

LM3477AMMX/NOPB
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLM3477 HIGH EFFICIENCY HIGH-SIDE
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 3,634
Can ship immediately
Pricing:
- 1$1.11
- 3,500$1.0098
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck, Buck-Boost
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):2.97V ~ 35V
- Frequency - Switching:500kHz
- Duty Cycle (Max):93%
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:8-VSSOP
