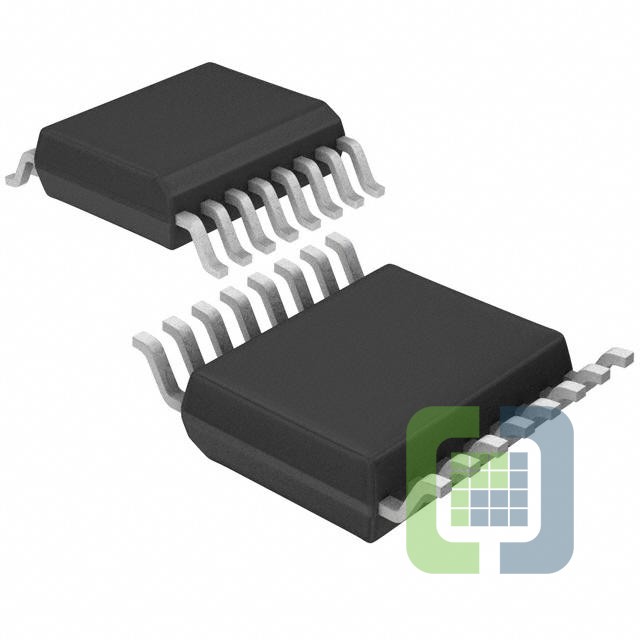

NCP1562BDBR2G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCHING CONTROLLER, VOLTAGE-MO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet NCP1562BDBR2G Datasheet
-
ECAD Model
- Share
In Stock: 22,560
Can ship immediately
Pricing:
- 1$1.15
- 2,500$1.15
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Forward Converter
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):23.2V ~ 100V
- Frequency - Switching:246kHz ~ 1MHz
- Duty Cycle (Max):85%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Frequency Control, Ramp, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-TSSOP
