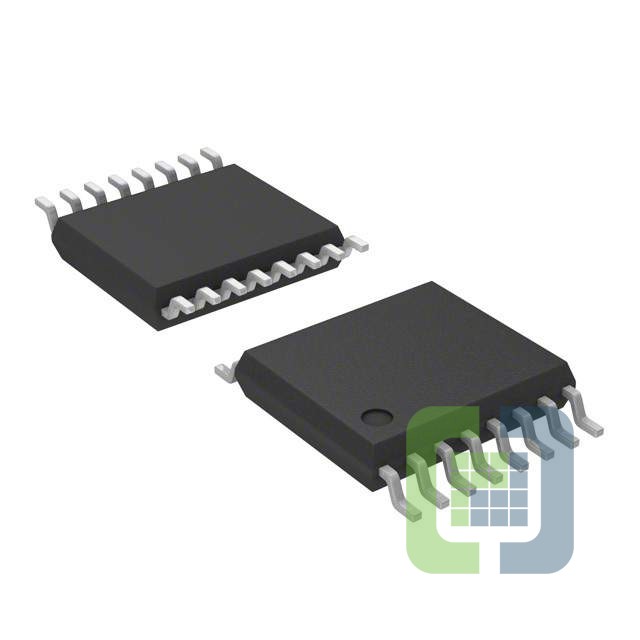

TPS53114PW
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS53114 4.5V TO 24V INPUT, SYNC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 9,228
Can ship immediately
Pricing:
- 1$1.41
- 10$1.26799
- 90$1.19598
- 180$1.01898
- 540$0.83719
- 1,080$0.69367
- 2,520$0.64583
- 5,040$0.62191
Quote It
Technical Details
- Series:D-CAP2™
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 24V
- Frequency - Switching:350kHz, 700kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-TSSOP
