UCC2897ARGPT
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUCC2897A ADVANCED CURRENT-MODE A
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 15,766
Can ship immediately
Pricing:
- 1$2.84
- 250$2.24592
- 500$2.01524
- 1,250$1.6996
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Flyback, Forward Converter
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8.5V ~ 16V
- Frequency - Switching:250kHz
- Duty Cycle (Max):70%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

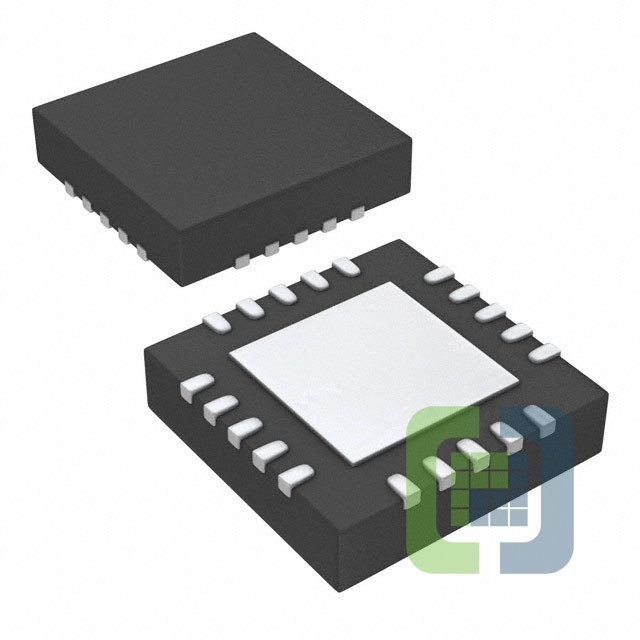

- Package / Case:20-VFQFN Exposed Pad
- Supplier Device Package:20-QFN (4x4)
