MIC2168AYMM
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- Description1 MHZ PWM SYNCHRONOUS BUCK CONTR
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MIC2168AYMM Datasheet
-
ECAD Model
- Share
In Stock: 2,764
Can ship immediately
Pricing:
- 1$1.7
- 300$1.5347
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3V ~ 14.5V
- Frequency - Switching:1MHz
- Duty Cycle (Max):90%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount

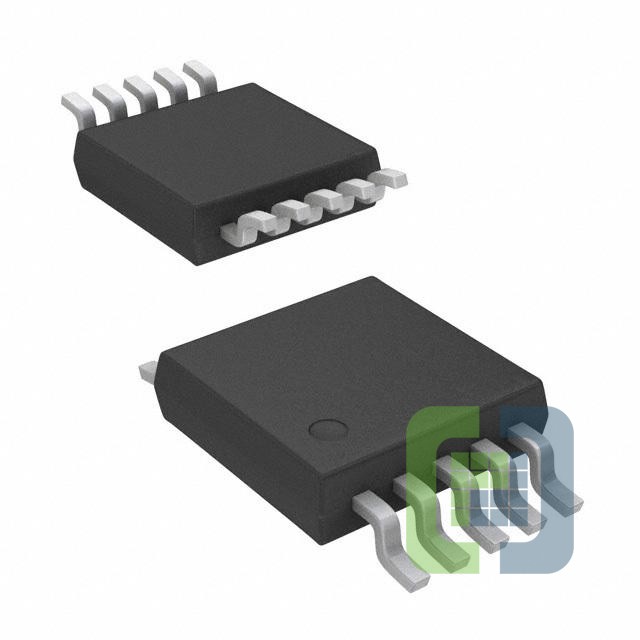

- Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:10-MSOP
