ADP1828ACPZ-R7
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSYNCHRONOUS BUCK PWM, STEP-DOWN,
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet ADP1828ACPZ-R7 Datasheet
-
ECAD Model
- Share
In Stock: 7,936
Can ship immediately
Pricing:
- 1$2.09
- 1,500$2.09
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3V ~ 20V
- Frequency - Switching:300kHz, 600kHz
- Duty Cycle (Max):93%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Power Good, Soft Start, Tracking
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount

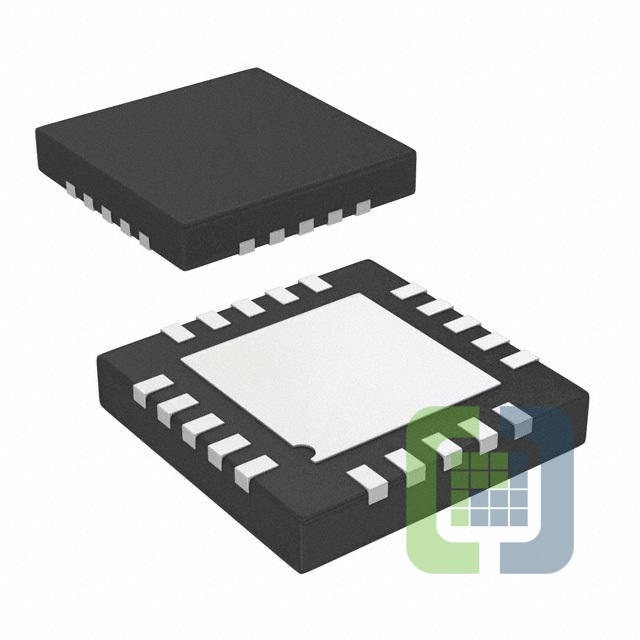

- Package / Case:20-WFQFN Exposed Pad, CSP
- Supplier Device Package:20-LFCSP-WQ (4x4)
