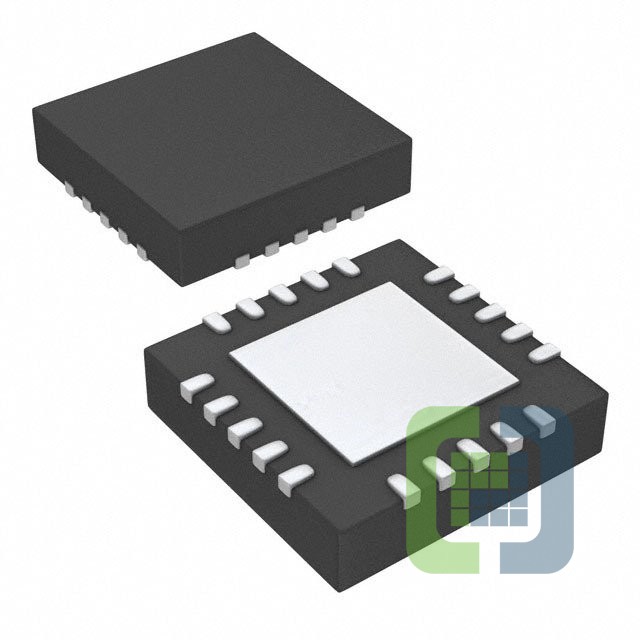

UCC28250RGPR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUCC28250 ADVANCED PWM CONTROLLER
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 25,752
Can ship immediately
Pricing:
- 1$2.22
- 3,000$1.98968
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Full-Bridge, Half-Bridge, Push-Pull
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.7V ~ 17V
- Frequency - Switching:85kHz ~ 1.15MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Ramp, Soft Start
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:20-VFQFN Exposed Pad
- Supplier Device Package:20-QFN (4x4)
