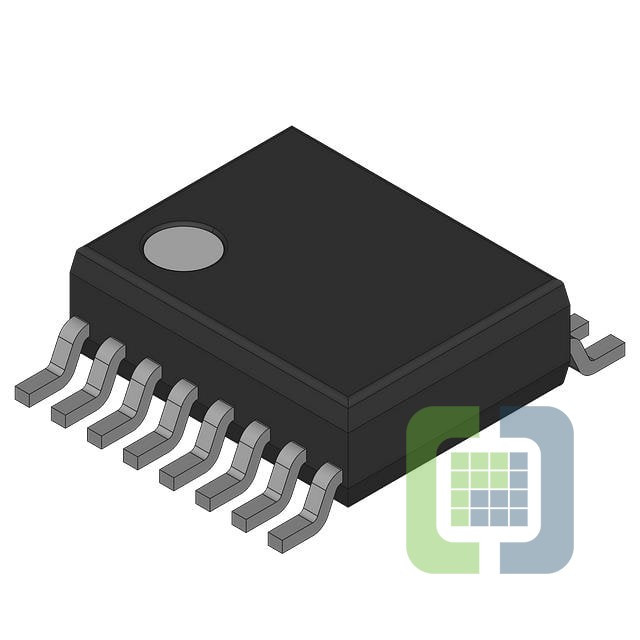

MAX8540EEE+T
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMAX8540 SYNCHRONIZABLE, HIGH-FRE
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX8540EEE+T Datasheet
-
ECAD Model
- Share
In Stock: 4,937
Can ship immediately
Pricing:
- 1$2.36
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Flyback, Forward Converter
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):7.6V ~ 18V
- Frequency - Switching:200kHz ~ 1MHz
- Duty Cycle (Max):80%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, On Time Control, Ramp, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:16-QSOP
