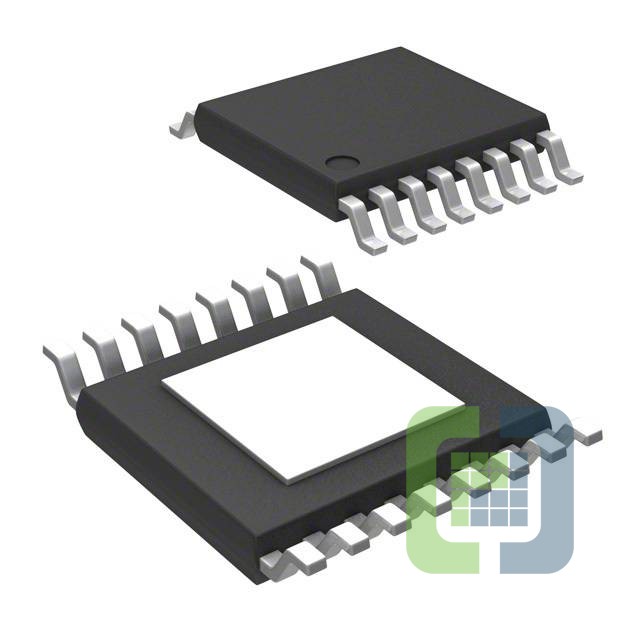

UCD8220PWP
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUCD8220 DIGITALLY ASSISTED PUSH
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 12,073
Can ship immediately
Pricing:
- 1$2.54
- 10$2.27986
- 90$2.15537
- 180$1.868
- 540$1.59019
- 1,080$1.34112
- 2,520$1.27406
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Full-Bridge, Half-Bridge, Push-Pull
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):4.5V ~ 15.5V
- Frequency - Switching:Up to 2MHz
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit
- Operating Temperature:-40°C ~ 105°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-PowerTSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-HTSSOP
