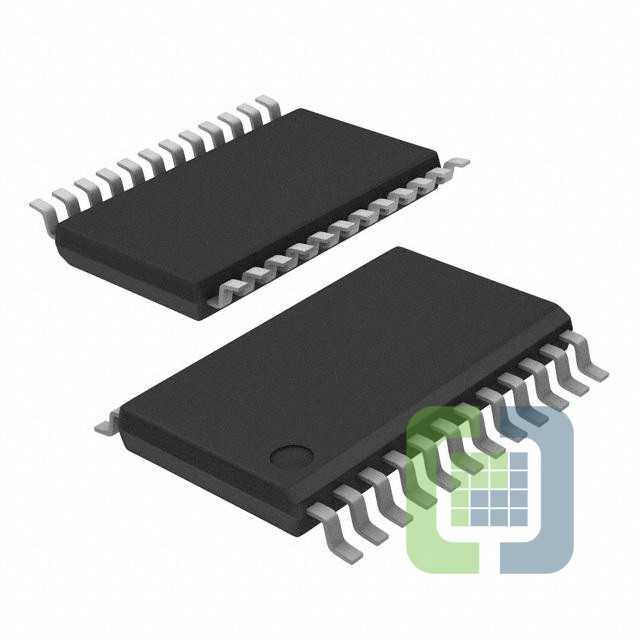

TPS40091PW
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTPS40091 4 CHANNEL MULTIPHASE BU
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 13,100
Can ship immediately
Pricing:
- 1$2.97
- 10$2.66518
- 60$2.51975
- 120$2.18377
- 540$1.85902
- 1,020$1.56785
- 2,520$1.48945
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:PWM Signal
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:4
- Output Phases:4
- Voltage - Supply (Vcc/Vdd):4.5V ~ 15V
- Frequency - Switching:100kHz ~ 1.2MHz
- Duty Cycle (Max):87.5%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:24-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:24-TSSOP
