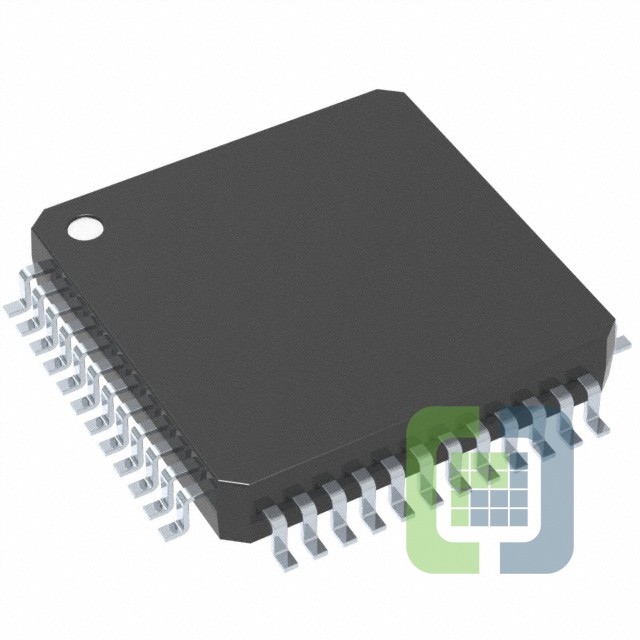

TL1464IPT
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTL1464 QUAD PULSE-WIDTH-MODULATI
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 20,041
Can ship immediately
Pricing:
- 1$3.72
- 250$3.72
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:-
- Function:-
- Output Configuration:-
- Topology:-
- Number of Outputs:4
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3.1V ~ 12V
- Frequency - Switching:50kHz ~ 2MHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:-
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Dead Time Control, Frequency Control
- Operating Temperature:-20°C ~ 75°C (TA)
- Mounting Type:Surface Mount
- Package / Case:48-LQFP
- Supplier Device Package:48-LQFP (7x7)
