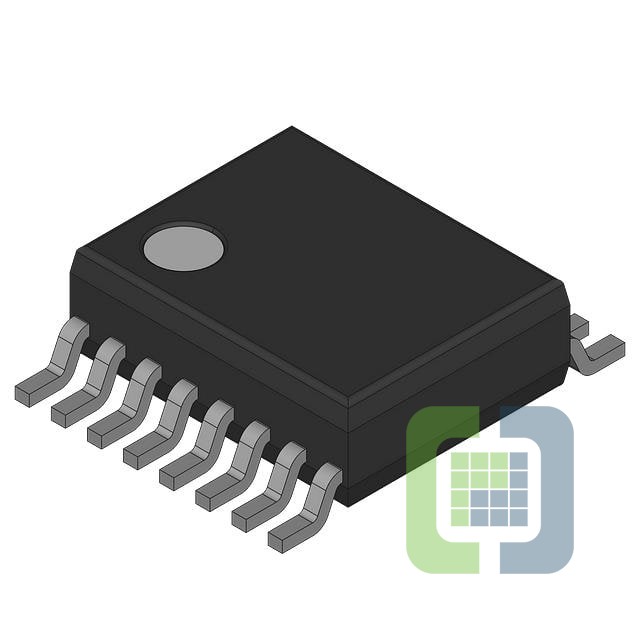

MAX1858AEEG+
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionMAX1858 DUAL 180 DEGREE OUT-OF-P
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX1858AEEG+ Datasheet
-
ECAD Model
- Share
In Stock: 1,565
Can ship immediately
Pricing:
- 1$4.47
- 10$4.2465
- 25$3.09421
- 50$2.93955
- 100$2.06632
- 250$1.963
- 500$1.9391
- 1,000$1.92927
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 23V
- Frequency - Switching:100kHz ~ 600kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Reset
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:24-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:24-QSOP
