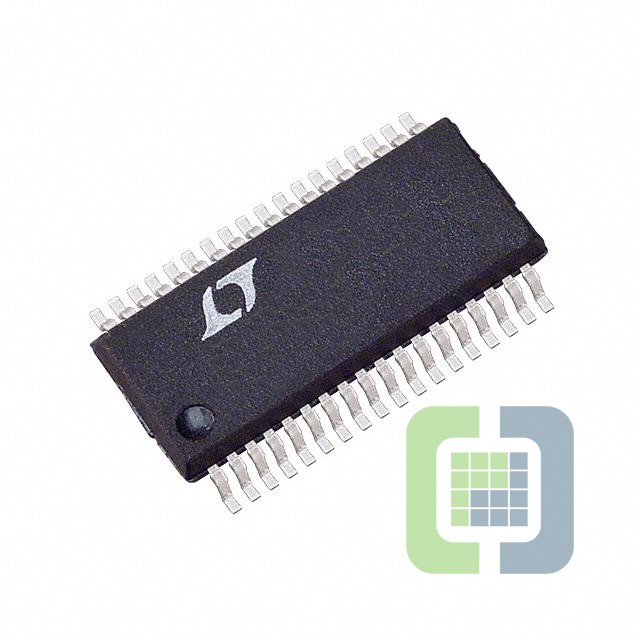

LTC1709EG-85#PBF
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLTC1709-85 - HI PWR POLYPHASE DC
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC1709EG-85#PBF Datasheet
-
ECAD Model
- Share
In Stock: 609
Can ship immediately
Pricing:
- 1$6.01
- 111$6.01
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4V ~ 36V
- Frequency - Switching:140kHz ~ 310kHz
- Duty Cycle (Max):99.5%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Power Good, Soft Start
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:36-SSOP (0.209", 5.30mm Width)
- Supplier Device Package:36-SSOP
