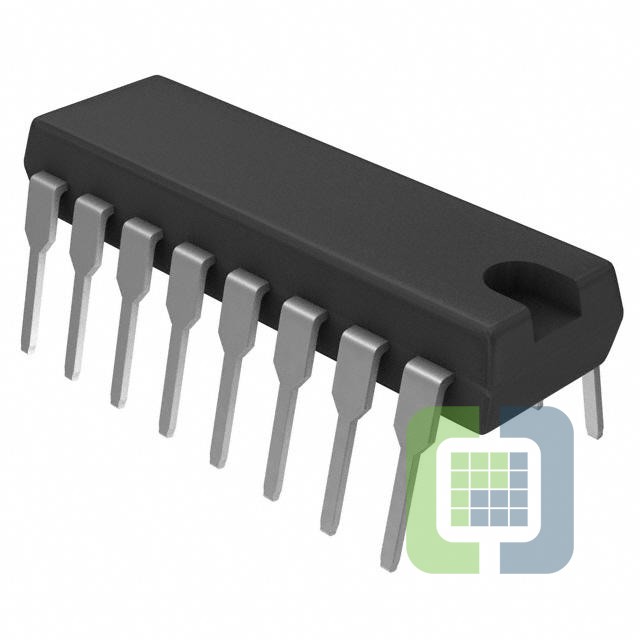

UCC2806N
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUCC2806 LOW POWER, DUAL OUTPUT,
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 5,630
Can ship immediately
Pricing:
- 1$9.38
- 10$8.61761
- 25$8.26032
- 100$7.27796
- 500$6.47429
- 1,000$5.93848
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Up/Step-Down
- Output Configuration:Positive, Isolation Capable
- Topology:Boost, Flyback, Forward Converter
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):8V ~ 14.5V
- Frequency - Switching:47kHz
- Duty Cycle (Max):50%
- Synchronous Rectifier:Yes
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Through Hole
- Package / Case:16-DIP (0.300", 7.62mm)
- Supplier Device Package:16-PDIP
