5962-8680603VEA
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionUC1846 - CURRENT-MODE PWM CONTRO
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
-
ECAD Model
- Share
In Stock: 215
Can ship immediately
Pricing:
- 1$458.76
- 25$310.2092
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up, Step-Down, Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
- Number of Outputs:2
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):6.95V ~ 40V
- Frequency - Switching:200kHz
- Duty Cycle (Max):50%
- Synchronous Rectifier:No
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Dead Time Control, Enable, Frequency Control, Soft Start
- Operating Temperature:-55°C ~ 125°C (TJ)
- Mounting Type:Through Hole

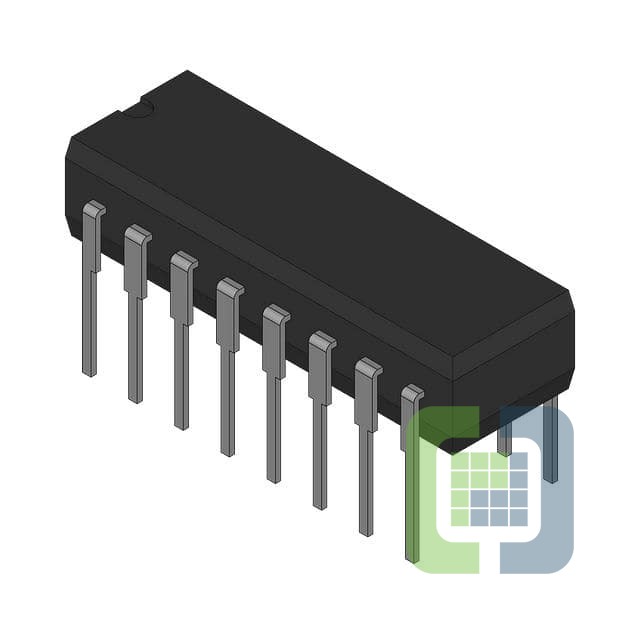

- Package / Case:16-CDIP (0.300", 7.62mm)
- Supplier Device Package:16-CDIP
