LTC7810ILXE#PBF
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- Description150V LOW IQ, DUAL, 2-PHASE SYNCH
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet LTC7810ILXE#PBF Datasheet
-
ECAD Model
- Share
In Stock: 139
Can ship immediately
Pricing:
- 1$12.69
- 25$8.42322
- 100$6.96466
- 250$6.61643
- 500$6.46718
Quote It
Technical Details
- Series:-
- Package:Tray
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.5V ~ 140V
- Frequency - Switching:105kHz ~ 780kHz
- Duty Cycle (Max):100%
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Frequency Control, Soft Start
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount

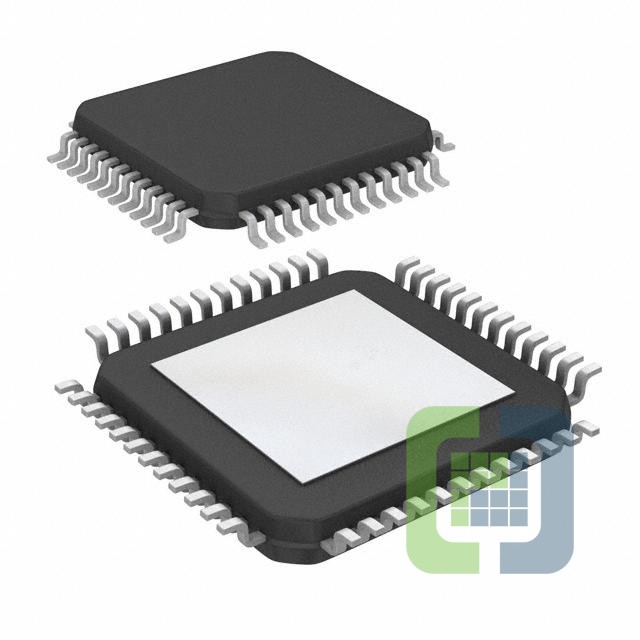

- Package / Case:48-LQFP Exposed Pad
- Supplier Device Package:48-eLQFP (7x7)
