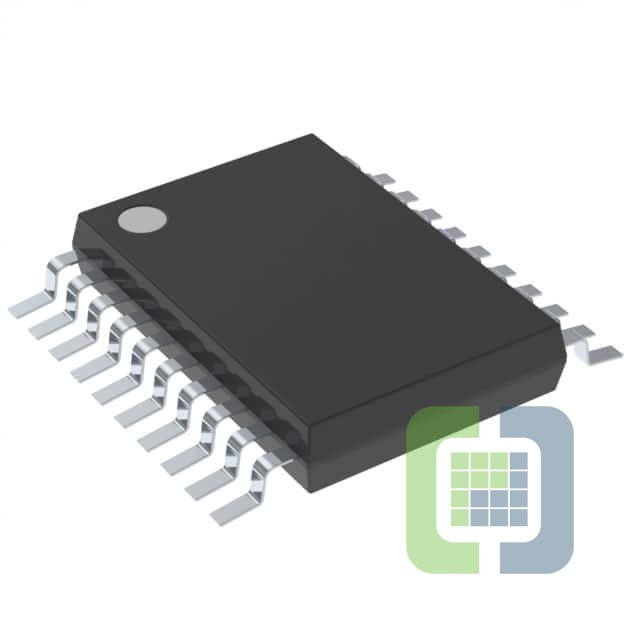

MCP1631HV-330E/ST
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR SEPIC 20TSSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MCP1631HV-330E/ST Datasheet
-
ECAD Model
- Share
In Stock: 381
Can ship immediately
Pricing:
- 1$1.77
- 25$1.47744
- 100$1.34113
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Up/Step-Down
- Output Configuration:Positive
- Topology:Sepic
- Number of Outputs:1
- Output Phases:1
- Voltage - Supply (Vcc/Vdd):3.5V ~ 16V
- Frequency - Switching:-
- Duty Cycle (Max):-
- Synchronous Rectifier:No
- Clock Sync:No
- Serial Interfaces:-
- Control Features:Enable, Frequency Control, Ramp
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:20-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:20-TSSOP
