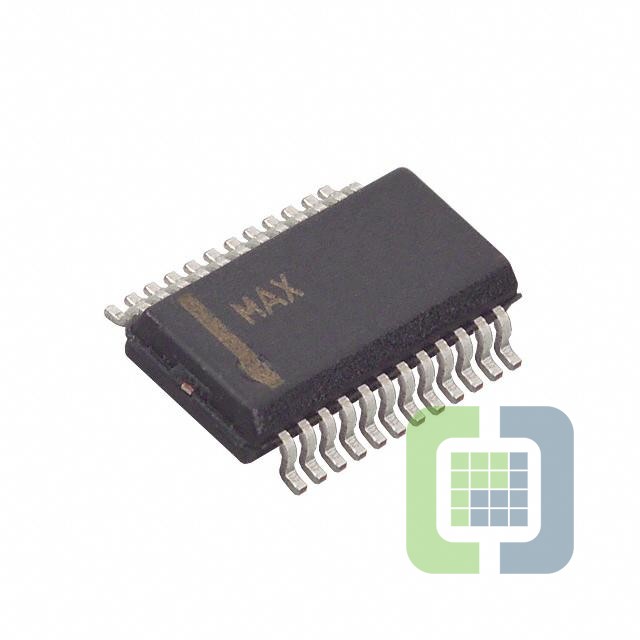

MAX1876EEG+
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG CTRLR BUCK 24QSOP
- CategoryPMIC - Voltage Regulators - DC DC Switching Controllers
- Datasheet MAX1876EEG+ Datasheet
-
ECAD Model
- Share
In Stock: 528,243
Can ship immediately
Pricing:
- 1$5.64
- 10$5.09617
- 50$4.85914
- 100$4.21916
- 250$4.02953
- 500$3.67399
- 1,000$3.19992
- 2,500$3.08141
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Output Type:Transistor Driver
- Function:Step-Down
- Output Configuration:Positive
- Topology:Buck
- Number of Outputs:2
- Output Phases:2
- Voltage - Supply (Vcc/Vdd):4.75V ~ 23V
- Frequency - Switching:100kHz ~ 600kHz
- Duty Cycle (Max):-
- Synchronous Rectifier:Yes
- Clock Sync:Yes
- Serial Interfaces:-
- Control Features:Current Limit, Enable, Frequency Control, Reset
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:24-SSOP (0.154", 3.90mm Width)
- Supplier Device Package:24-QSOP
